Crane GD 4500T is our biggest and strongest crane. It's equiped with 2nd extension boom (80 cm), 2 steering cylinders and stronger lifting cylinders. Crane has a three point hitching system and preparation for mounting on a trailer. When it's used on a tractor, we recommend a tractor with at least 80 hp. Control valve is professional forestry valve 4/8.
Crane is suitable for installation on our GP 6000 trailer. You can mount these trailers on various types of trailers (tipping trailers, dump tippers, ...).
- controlled with forestry valve 4/8,
- three-point mounting on the tractor,
- preparation for trailer mounting,
- possibility of PTO pump and tank.
It can be fitted with various attachment tools such as:
- rotator 360°,
- log pliers GK 105,
- manure forks,
Gallery
Accessories GD
Tehnični podatki

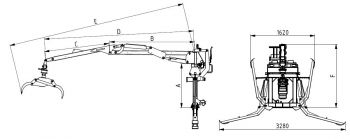

| Max reach [E] | 5785 mm |
| Reach [D] | 5130 mm |
| Width with folded support legs | 1620 mm |
| Width with support legs (work) | 3280 mm |
| Slewing angle | 190 ° |
| Slewing cylinders - Slewing torque | 2 - 6,4 kNm |
| Weight | 650 kg |
| Working pressure | 175 bar |
| Lifting capacity at full reach | 350 kg |
| Lifting capacity - max. | 850 kg |
| Telescopic boom stroke length | 800 mm |
