The An 1 is a rear tractor loader, suitable for tractors with at least ~35 HP and own weight of tractor minimum 1500 kg. It's made from quality and durable materials. Loader has own hydraulic telescopic support legs.The loader is equipped with its own PTO pump. They are controlled by a proportional joystick control system. The quick and easy installation and disassembly of the loader on the tractor allows quick ready for use. It is basically intended for loading manure, but you can also attach a digging bucket, log pliers, ...
Due to its size, the loader is suitable for use mainly in small farms, gardens, nurseries, golf courses, municipal maintenance (parks, cemeteries, ...)
Gallery
Implements AN 1
Tehnični podatki
| Suitable for tractors | over 26 kW / 35 KM |
| Weight | 360 kg |
| Lifting force / 4,0 m | 310 kg |

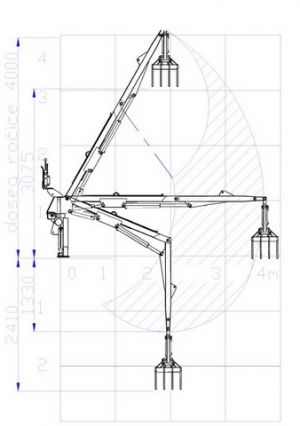

| Working reach | 4000 mm |
| Working height | 2880 mm |
| Digging depth with bucket | 1560 mm |
| Turning angle | 186° |
| Support legs | hydraulic (telescopic) |
