Front tractor loader An 20 is suitable for tractors up to 50 HP. The loader structure itself is also suitable for older and smaller tractors that do not have front-wheel drive. Special attention is paid to mounting parts and they are designed as close as possible against the center of gravity of the tractor. Proper selection of the loader and the installation of the mounting parts ensure safe operation and optimum lifting power. The quality of the mounting parts ensures that the loaders' performance on the tractor is minimized. Installation of all connections is carried out in our company.
The quick and easy mounting a loader on a tractor allows you constant readiness for use, since it's only installed within a few minutes. Lubricating sliding bushes are installed in all loader.
You can choose from a large and sophisticated system of additional attachment tools:
- bucket,
- manure fork,
- pallet fork,
- bale spike,
- bucket or manure fork with grapple,
- ...
It's especially suitable for small farms, and with extra tools it is very suitable for cleaning sheep's stable ...
Gallery
Implements AN 20
Tehnični podatki
| Suitable for tractors | do 45 kW / ( do 60 KM) |
| Weight, lifting arms without implement | 300 kg |

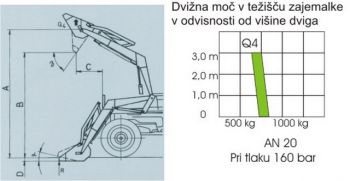

| A - Maximum lift height in the implement’s pivot point | 800 kg |
| A - višina vrtišča od tal | 3080 mm |
| B - Dump height | 2600 mm |
| C - Dump width | 600 mm |
| D - Digging depth | 100 mm |
| alfa - Tilt angle | 15° |
| beta - Dump angle | 50° |
